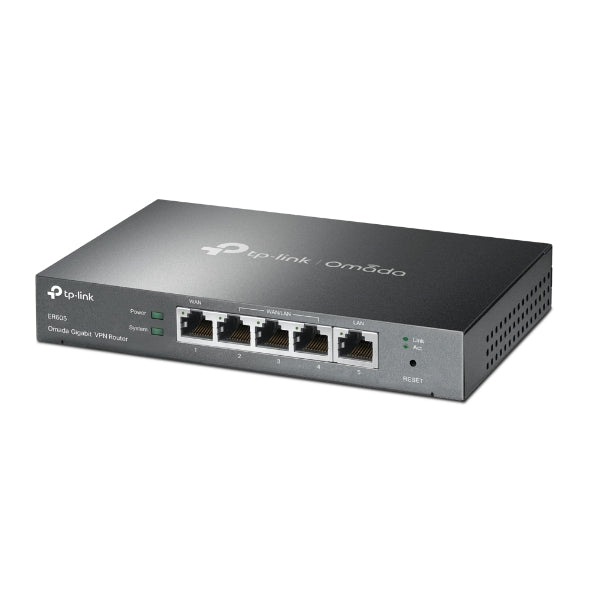

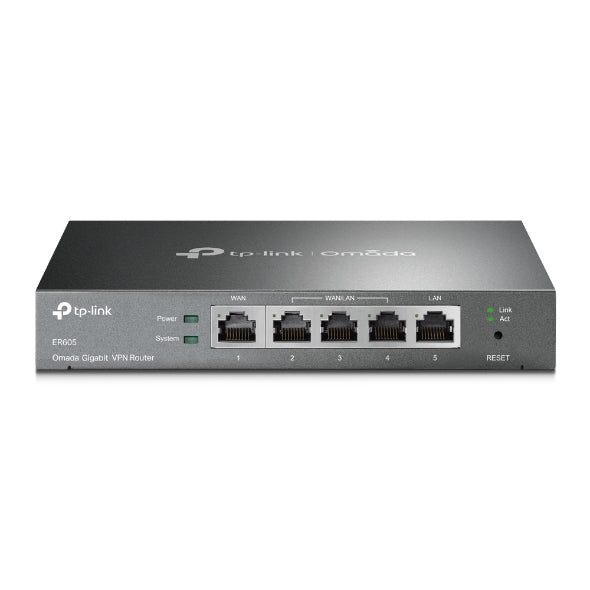

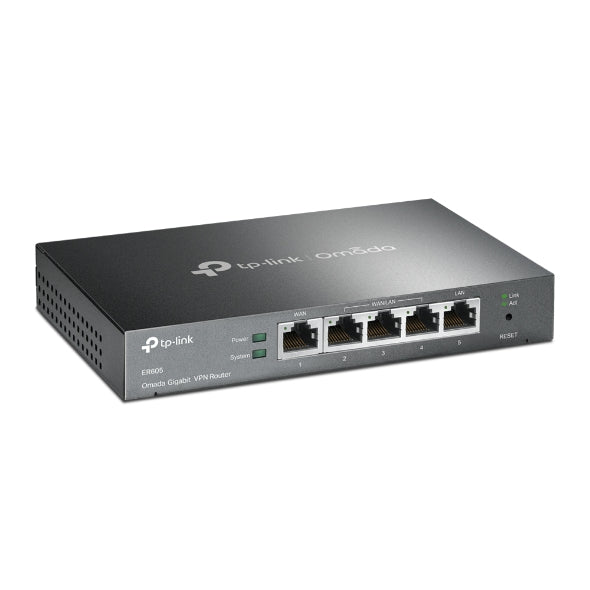

Omada ER605 Gigabit VPN Router - 18 Months Official Warranty

ER605
Omada Gigabit VPN Router

• Integrated with Omada SDN: Centralized Cloud Management and Intelligent Monitoring

• 5× Gigabit Ports, up to 4 WAN Ports (1 WAN + 3 WAN/LAN) with load balancing

• Highly Secure VPN: Up to 20× LAN-to-LAN IPsec, 16× OpenVPN, 16× L2TP, 16× PPTP

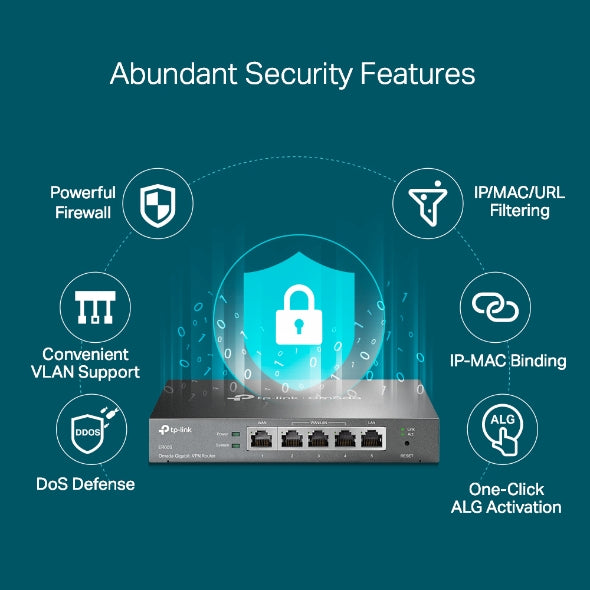

• Abundant security features: Firewall policies, DoS defense, IP/MAC/URL filtering

SECURITY

• DPI with support for 2,421 applications

• Access control: Source/Destination IP

• DNS Proxy: DNSSEC, DoH, DoT, DNS Override

• Web/URL filtering, Web security

• ARP inspection, IP-MAC binding

• Attack defense: TCP/UDP/ICMP flood protection, block TCP scans, block ping from WAN

HARDWARE

• Standards: IEEE 802.3/802.3u/802.3ab/802.3x, IEEE 802.1q

• Protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP/HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP

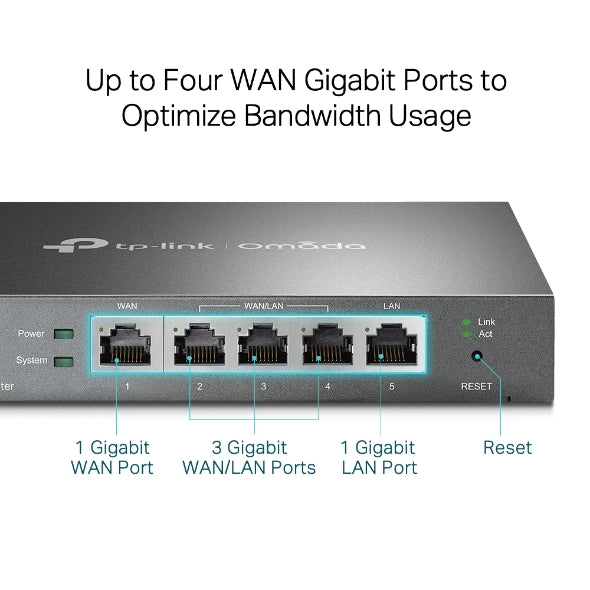

• Interfaces: 1× Gigabit WAN, 1× Gigabit LAN, 3× changeable Gigabit WAN/LAN

• Network Media: 10/100/1000BASE-T

• Fanless, Reset button, Flash: 16 MB SPI, DRAM: 128 MB

• LEDs: PWR, SYS, WAN, LAN

• Dimensions: 158 × 101 × 25 mm

• Protection: 4 kV surge, Steel enclosure

• Mounting: Desktop/Wall

• Max Power: 7.94 W

PERFORMANCE

• DPI Throughput: TCP 905 Mbps, UDP 788 Mbps

• GRE: Unencrypted 460.97 Mbps, Encrypted 161.83 Mbps

• WireGuard VPN: 123.4 Mbps

• Concurrent Sessions: 25,000, New Sessions/sec: 2,600

• NAT Throughput: Static IP, DHCP, PPPoE, L2TP, PPTP supported

• VPN Throughput: IPsec 41.5 Mbps, OpenVPN 21.7 Mbps, L2TP unencrypted 864.65 Mbps / encrypted 47.11 Mbps, PPTP unencrypted 703.2 Mbps / encrypted 76.65 Mbps

• Packet forwarding: 64 Byte: Upload/Download 1,402,238 pps, Bi-directional 1,681,548 pps; 1,518 Byte: Upload/Download 997.5 Mbps, Bi-directional 1965 Mbps

BASIC FUNCTIONS

• LAN DNS supported

• WAN: Static/Dynamic IP, PPPoE, PPTP, L2TP

• MAC Clone, DHCP Server/Client, Multi-net DHCP, Multi-IP Interfaces

• Stateful ACL, QoS, Bridge VLAN, mDNS Repeater

• IPv6 (developing), VLAN 802.1Q, IPTV IGMP v2/v3 Proxy

ADVANCED FEATURES

• Access control: IP/Port/Protocol/Domain filtering

• Advanced routing: Static, Policy routing

• Bandwidth control: IP/Port-based, Guarantee & Limited

• Load balance: Intelligent, App-optimized, Link Backup, Online Detection

• NAT: One-to-One NAT, Multi-Net NAT, Virtual Server, Port Triggering, NAT-DMZ, ALG support

• Security: SPI firewall, VPN passthrough, DoS defense, Ping of Death

• Session limit: IP-based

VPN

• GRE (Standalone), SD-WAN (Controller mode)

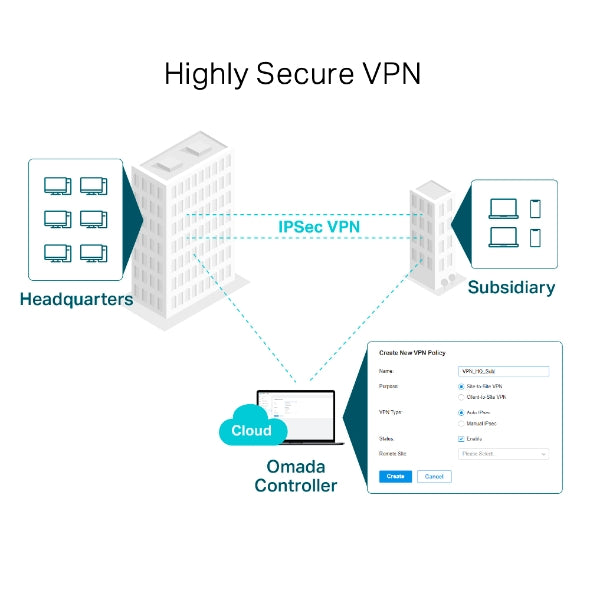

• IPsec VPN: 20 tunnels, LAN-to-LAN/Client-to-LAN, DES/3DES/AES128/192/256, IKEv1/v2, MD5/SHA1, NAT-T, DPD, PFS

• PPTP VPN: Server + 10 clients, 16 tunnels, MPPE encryption

• L2TP VPN: Server + 10 clients, 16 tunnels, L2TP over IPSec

• OpenVPN: Server + 10 clients, 16 tunnels

• WireGuard VPN: 20 tunnels

AUTHENTICATION

• Web Authentication: No Auth, Simple Password, Hotspot (Local/Voucher/SMS/Radius), External Radius/Portal, Facebook

MANAGEMENT

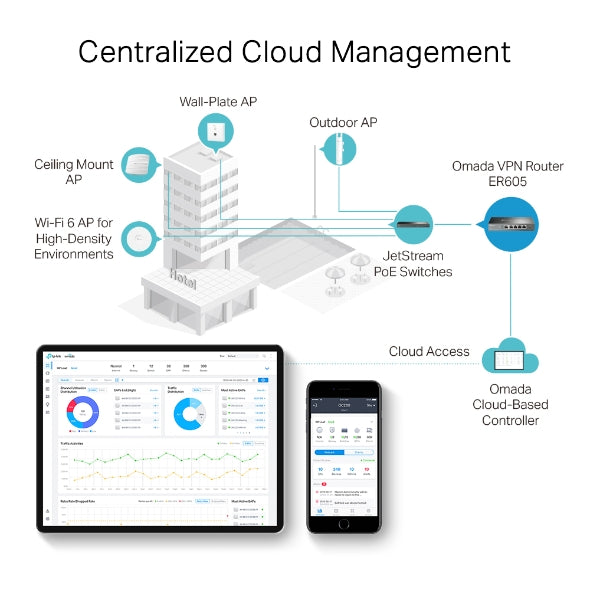

• Omada App, Centralized Management via OC200/OC300 or Software Controller

• Cloud Access via OC200/300 or Software Controller

• Services: Dynamic DNS

• Maintenance: Time Setting, Diagnostics, Firmware Upgrade, Factory Defaults/Reboot, Backup & Restore, System Log, Remote Management, Statistics, Controller Settings, SNMP

• Zero-Touch Provisioning with Omada Cloud

• Automatic Device Discovery, Network Monitoring, Event Warnings, Unified Config, Reboot Schedule, Captive Portal

OTHERS

• Certifications: CE, FCC, RoHS

• Package: ER605, Power Adapter, RJ45 Cable, Quick Installation Guide

• System Requirements: Windows 98SE–10, MAC OS, Linux, UNIX, NetWare

• Operating Temp: 0–40°C, Storage: -40–70°C

• Humidity: Operating 10–90%, Storage 5–90%
