Omada EAP223 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point - 18 Months Official Warranty

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
Provides stable dual-band Wi-Fi performance with combined wireless speeds of up to 1317 Mbps, delivering 450 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band. Designed for seamless integration with the Omada SDN platform, it supports Zero-Touch Provisioning, centralized cloud management, and intelligent network monitoring. Seamless roaming ensures uninterrupted voice calls and video streaming as users move between coverage areas. The access point supports both standard 802.3af/at PoE and 48V passive PoE for flexible deployment; however, the PoE adapter is not included. Advanced wireless technologies such as MU-MIMO, band steering, airtime fairness, and beamforming optimize network efficiency, while a secure guest network with multiple authentication methods ensures controlled and protected access.

Hardware Features:

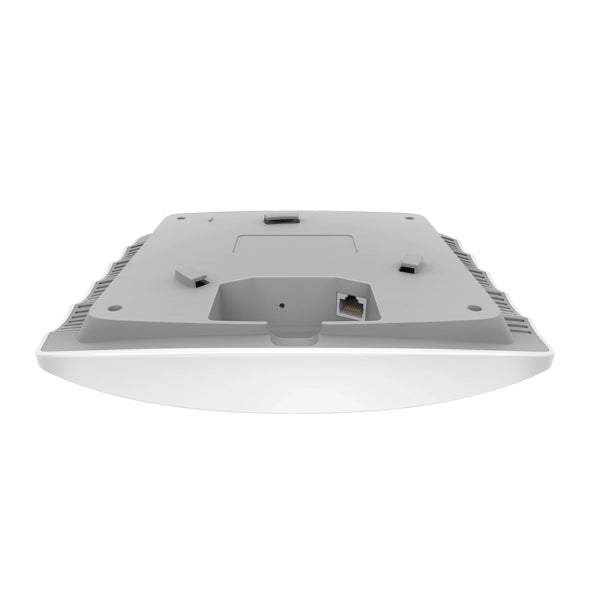

- 1× Gigabit Ethernet (RJ-45) port supporting IEEE 802.3af/at PoE and passive PoE
- Integrated physical security lock
- Reset button
- Power supplied via 802.3af/at PoE or 48V passive PoE (adapter not included)
- Maximum power consumption: 9.7 W (EU), 12.1 W (US)
- Dimensions: 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)
- Three internal omni-directional antennas: 4 dBi for 2.4 GHz and 5 dBi for 5 GHz
- Supports ceiling and wall mounting (mounting kits included)

Wireless Features:
- Wireless standards: IEEE 802.11ac/n/g/b/a
- Dual-band operation on 2.4 GHz and 5 GHz
- Wireless speeds up to 867 Mbps on 5 GHz and 450 Mbps on 2.4 GHz
- Supports up to 15 SSIDs (8 on 2.4 GHz and 7 on 5 GHz)
- Wireless functions include radio enable/disable, automatic channel assignment, transmit power adjustment, QoS (WMM), seamless roaming, Omada Mesh, band steering, load balancing, MU-MIMO, airtime fairness, beamforming, rate limiting, scheduled reboot, wireless scheduling, and detailed wireless statistics by SSID, access point, and client

Wireless Security:
- Captive portal authentication
- Access control and MAC address filtering
- Wireless client isolation
- SSID to VLAN mapping
- Rogue access point detection
- 802.1X authentication support

Transmission Power:
- CE compliance: up to 20 dBm (2.4 GHz EIRP) and 23 dBm (5 GHz EIRP)
- FCC compliance: up to 24 dBm (2.4 GHz) and 22 dBm (5 GHz)

Management Features:
- Omada app support
- Centralized management via Omada hardware controllers (OC300, OC200), software controller, or cloud-based controller
- Cloud access through Omada controllers
- Email alerts and LED on/off control
- Management MAC address control
- SNMP v1 and v2c support
- Local and remote syslog logging
- Secure SSH access
- Web-based management via HTTP and HTTPS
- Layer 3 management, multi-site management, and management VLAN support
- Zero-Touch Provisioning supported through the Omada cloud-based controller

Other Details:
- Certifications: CE, FCC, RoHS
- Package includes AC1350 EAP223 access point, mounting kits, and installation guide
- Compatible operating systems: Windows XP, Vista, 7, 8, 10, 11, and Linux
- Operating temperature range: 0–40 ℃; storage temperature range: -40–70 ℃
- Operating humidity: 10–90% RH non-condensing; storage humidity: 5–90% RH
