Omada EAP215-Bridge KIT 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge - 18 Months Official Warranty

| **Product Title** | Omada EAP215‑Bridge KIT – 5 GHz AC867 Long‑Range Indoor/Outdoor Wireless Bridge |
|-------------------|--------------------------------------------------------------------------|
| **Overview** | A long‑range outdoor wireless bridge system operating on the 5 GHz band with up to 867 Mbps throughput, designed to connect two remote network locations without cabling. It’s built for extended outdoor coverage up to about 5 km and suitable for surveillance, remote sites, farms, and large outdoor areas.:contentReference[oaicite:1]{index=1} |
| **Wireless Performance** | Uses 802.11ac Wi‑Fi on the 5 GHz frequency, providing up to ~867 Mbps data rate for stable long‑distance transmission.:contentReference[oaicite:2]{index=2} |
| **Long‑Range Connectivity** | Offers wireless bridge links up to approximately 3.1 miles (5 km) under open outdoor conditions for point‑to‑point or point‑to‑multi‑point connections.:contentReference[oaicite:3]{index=3} |
| **Auto‑Pairing & Setup** | Preconfigured kit enables instant automatic pairing out of the box. Multiple bridges (up to 1‑to‑4) can automatically pair without needing portal login, simplifying deployment.:contentReference[oaicite:4]{index=4} |
| **App‑Guided Alignment** | Visual alignment assistance via mobile app helps position devices for optimal long‑distance links and instant speed testing.:contentReference[oaicite:5]{index=5} |

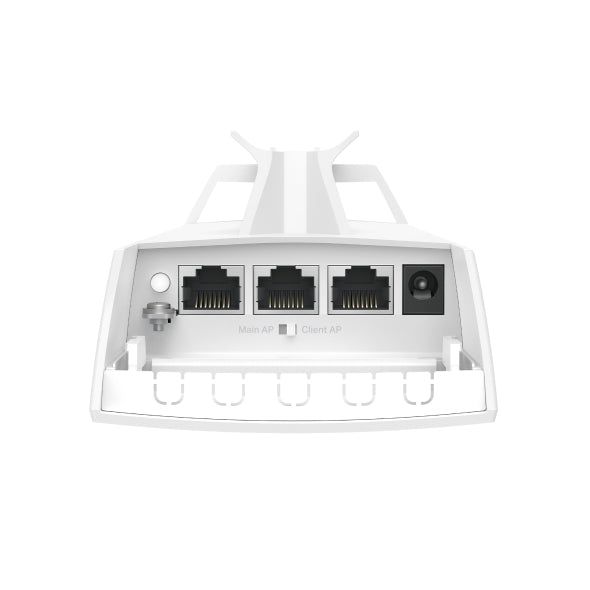

| **Gigabit Ports** | Includes **3× Gigabit Ethernet ports** on each unit, allowing connection of IP cameras or network devices without requiring additional switches.:contentReference[oaicite:6]{index=6} |
| **Flexible Power Options** | Supports **802.3af PoE**, **24 V Passive PoE**, and **12 V DC** power inputs for versatile installation options, including compatibility with solar power systems.:contentReference[oaicite:7]{index=7} |
| **Outdoor‑Ready Design** | IP65‑rated weather resistant housing protects against dust and rain. The bridge also features **6 kV lightning protection** and operates in extreme temperature ranges from **‑40 °C to +70 °C**.:contentReference[oaicite:8]{index=8} |
| **Wireless Bridge Modes** | Supports point‑to‑point and point‑to‑multi‑point (PtP & PtMP) connections that allow linking several remote bridges in one network.:contentReference[oaicite:9]{index=9} |
| **Wireless Security & Functions** | Features MU‑MIMO, multiple SSIDs (up to 8), beamforming, load balancing, wireless scheduling, rate limiting, RADIUS accounting, MAC authentication, VLAN support, rogue AP detection, and guest network capability.:contentReference[oaicite:10]{index=10} |
| **Management Options** | Can be monitored and managed locally via web UI or mobile app, or remotely and centrally using Omada SDN controllers or Omada cloud management.:contentReference[oaicite:11]{index=11} |
| **Package Contents** | • EAP215‑Bridge KIT<br>• Passive PoE Adapter<br>• Power Cord<br>• Mounting Kit<br>• Installation Guide.:contentReference[oaicite:12]{index=12} |
| **Operating Conditions** | –40 °C to 70 °C operating temperature, humidity range 10 %–90 % non‑condensing, suitable for harsh outdoor environments.:contentReference[oaicite:13]{index=13} |
