Omada EAP211-Bridge KIT Wireless Bridge 5 GHz 867 Mbps Indoor/Outdoor Access Point - 18 Months Official Warranty

| **Product Title** | Omada EAP211‑Bridge KIT – 5 GHz AC867 Outdoor Wireless Bridge Kit
| **Overview** | A long‑range outdoor wireless bridge system operating on the 5 GHz band, delivering up to ~867 Mbps throughput and designed to wirelessly link two locations without cables. Ideal for surveillance, remote buildings, farms, and outdoor network extension. Up to approx. 1 km wireless range in open outdoor conditions.:contentReference[oaicite:0]{index=0} |
| **Wireless Performance** | Uses 802.11ac Wi‑Fi on the 5 GHz frequency to support up to ~867 Mbps data rate for stable long‑distance transmission.:contentReference[oaicite:1]{index=1} |
| **Long‑Range Connectivity** | Provides wireless bridge coverage of up to ~1 km (0.62 mi) in open outdoor environments, suitable for point‑to‑point links.:contentReference[oaicite:2]{index=2} |
| **Auto‑Pairing** | Preconfigured kit enables automatic pairing out of the box for a fast plug‑and‑play setup.:contentReference[oaicite:3]{index=3} |
| **Agile LEDs** | Built‑in agile LED indicators help with deployment and alignment of the bridge devices.:contentReference[oaicite:4]{index=4} |

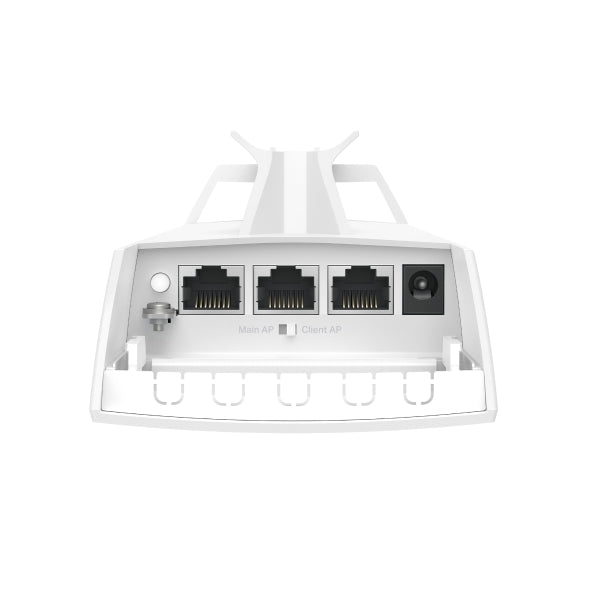

| **Gigabit Ethernet Ports** | Each unit includes **3× Gigabit Ethernet ports** to connect cameras or other network devices without needing additional switches.:contentReference[oaicite:5]{index=5} |
| **Flexible Power Options** | Supports **12 V DC** and **24 V Passive PoE** for deployment flexibility; passive PoE adapter is included.:contentReference[oaicite:6]{index=6} |
| **Outdoor‑Ready Construction** | IP65 weatherproof enclosure with **6 kV lightning protection** ensures durability in harsh outdoor conditions.:contentReference[oaicite:7]{index=7} |
| **Wireless Bridge Modes** | Supports point‑to‑point (PtP) and point‑to‑multi‑point (PtMP) bridge connections for extended network links.:contentReference[oaicite:8]{index=8} |
| **Wireless Features** | Includes MU‑MIMO, multiple SSIDs (up to 8), beamforming, load balancing, airtime fairness, wireless scheduling, wireless statistics, rate limiting, RADIUS accounting, VLAN support, MAC authentication, captive portal authentication, and more.:contentReference[oaicite:9]{index=9} |
| **Management Options** | Can be managed locally via web UI or mobile app, or centrally through the Omada SDN platform for remote management.:contentReference[oaicite:10]{index=10} |
| **Hardware Features** | • 3× Gigabit Ethernet ports<br>• Reset button<br>• Antenna: internal 2×2 dual‑polarized directional MIMO antennas with approx. 7‑10 dBi gain<br>• Max power consumption ~11.5 W<br>• Pole mounting accessories included.:contentReference[oaicite:11]{index=11} |
| **Package Contents** | • EAP211‑Bridge KIT units<br>• Passive PoE adapter<br>• Power cord<br>• Installation guide<br>• Mounting kit.:contentReference[oaicite:12]{index=12} |
| **Operating Conditions** | Operating temp: −40 °C to +70 °C; storage temp: −40 °C to +70 °C; operating humidity: 10 %–90 % non‑condensing.:contentReference[oaicite:13]{index=13} |
