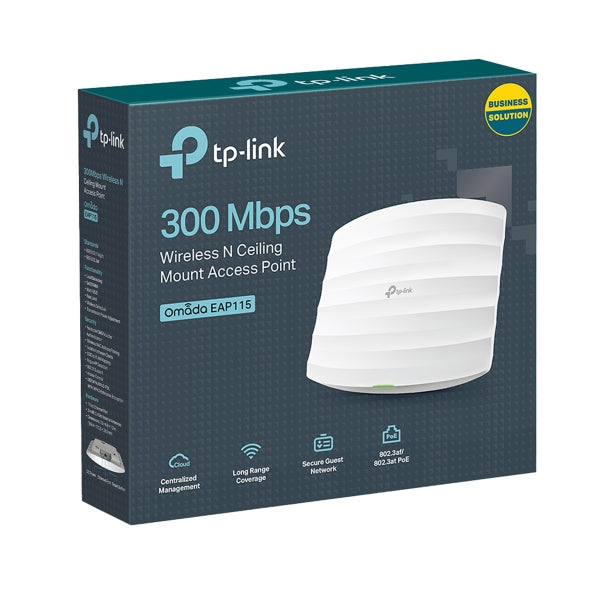

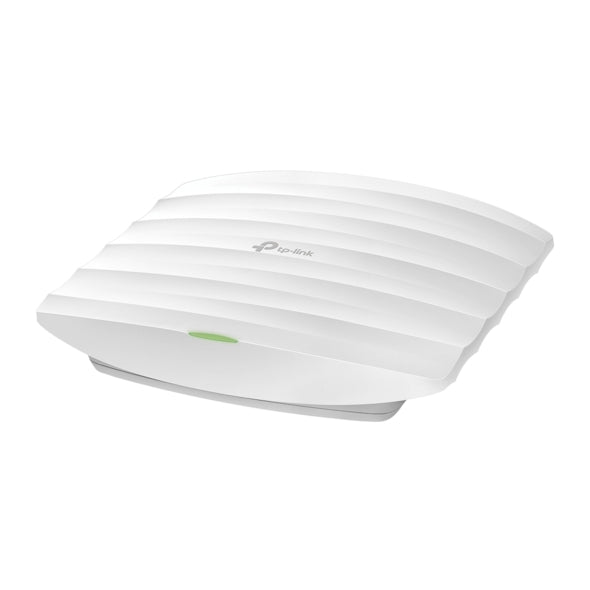

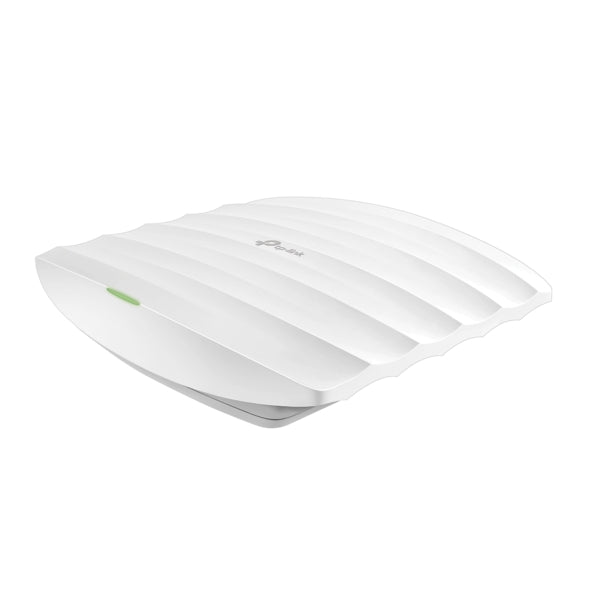

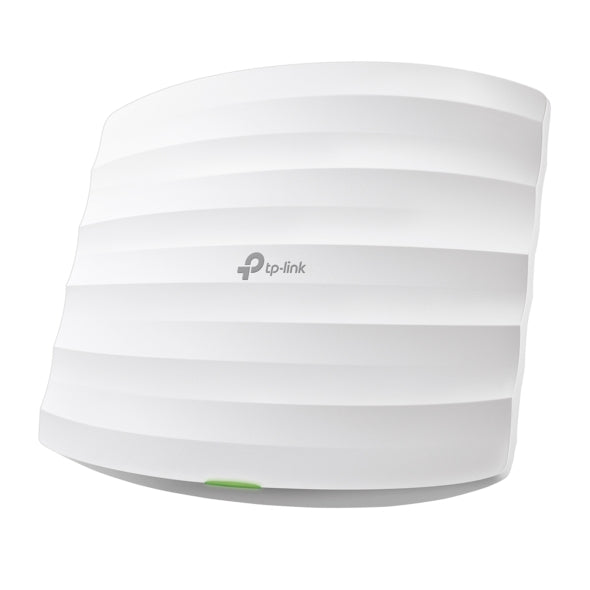

Omada EAP115 300Mbps Wireless N Ceiling Mount Access Point - 18 Months Official Warranty

EAP115
300Mbps Wireless N Ceiling Mount Access Point
Designed for reliable and affordable wireless coverage, the EAP115 delivers wireless speeds of up to 300 Mbps on the 2.4 GHz band. It integrates seamlessly with the Omada ecosystem, offering centralized cloud management through the Omada app or controller for simplified network administration. Power over Ethernet (802.3af) support allows convenient installation using a single cable, while the lightweight and simple mounting design ensures easy ceiling or wall deployment. Advanced enterprise-grade wireless security features, along with a secure guest network and multiple authentication options, help protect the network and manage user access efficiently. Multi-SSID capability enables separate wireless networks for different user groups, and management VLAN support enhances overall network control.

Hardware Features:

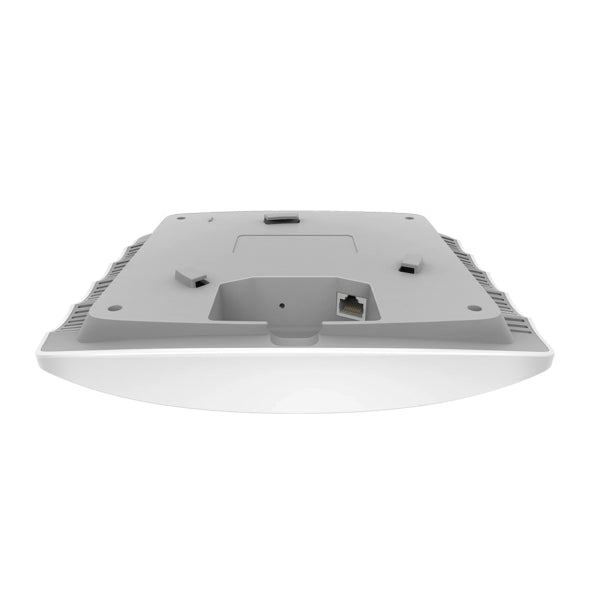

- 1× Fast Ethernet (RJ-45) port supporting IEEE 802.3af PoE
- Reset button
- Power input via 802.3af PoE or external 9V DC / 0.6A power adapter
- Maximum power consumption: 2.8 W
- Compact dimensions: 7.5 × 6.7 × 1.2 in (189.5 × 170.5 × 29.7 mm)
- Internal antennas: 2× 4 dBi omni-directional

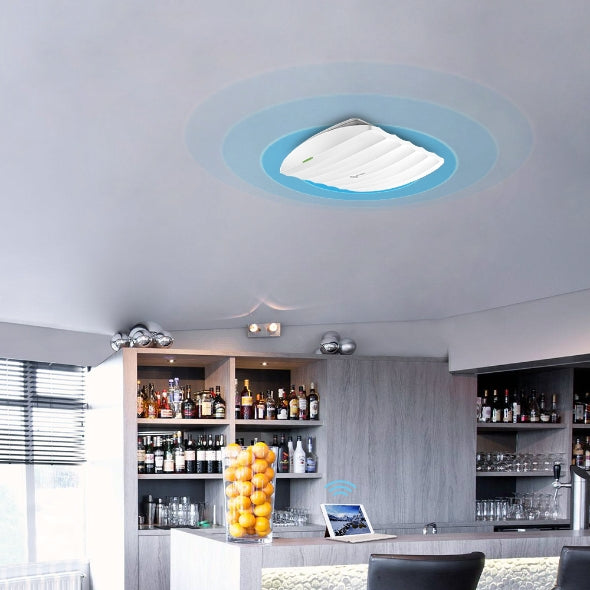

- Supports ceiling and wall mounting (mounting kits included)

Wireless Features:
- Wireless coverage up to 60㎡ (650 ft²)
- Supports more than 100 concurrent clients
- Wireless standards: IEEE 802.11n/g/b
- Operating frequency: 2.4–2.4835 GHz
- Wireless speed up to 300 Mbps (11n), 54 Mbps (11g), and 11 Mbps (11b)
- Reception sensitivity optimized for various data rates
- Supports up to 8 SSIDs
- Wireless functions include radio enable/disable, automatic channel assignment, transmit power adjustment, QoS (WMM), rate limiting, reboot scheduling, wireless scheduling, and detailed wireless statistics by SSID, access point, and client

Wireless Security:
- Captive portal authentication
- Access control policies
- MAC address filtering
- Wireless client isolation
- SSID to VLAN mapping
- Rogue access point detection
- 802.1X authentication support
- WEP (64/128/152-bit), WPA/WPA2-Enterprise, and WPA/WPA2-PSK security protocols

Transmission Power:
- CE compliant: up to 19 dBm (EIRP)
- FCC compliant: up to 21 dBm

Management Features:
- Omada app support
- Centralized management via Omada hardware or software controller
- Cloud access supported through Omada controllers
- Email alert notifications
- LED on/off control
- Management MAC address control
- SNMP v1 and v2c support
- Local and remote syslog logging
- Secure SSH access
- Web-based management via HTTP and HTTPS
- Layer 3 management, multi-site management, and management VLAN support

Other Details:
- Certifications: CE, FCC, RoHS
- Package includes EAP115 access point, power adapter, mounting kits, and installation guide
- Compatible with Windows XP, Vista, 7, 8, 10, 11, and Linux operating systems
- Operating temperature range: 0–40 ℃
- Storage temperature range: -40–70 ℃
- Operating humidity: 10–90% RH non-condensing
- Storage humidity: 5–90% RH non-condensing
