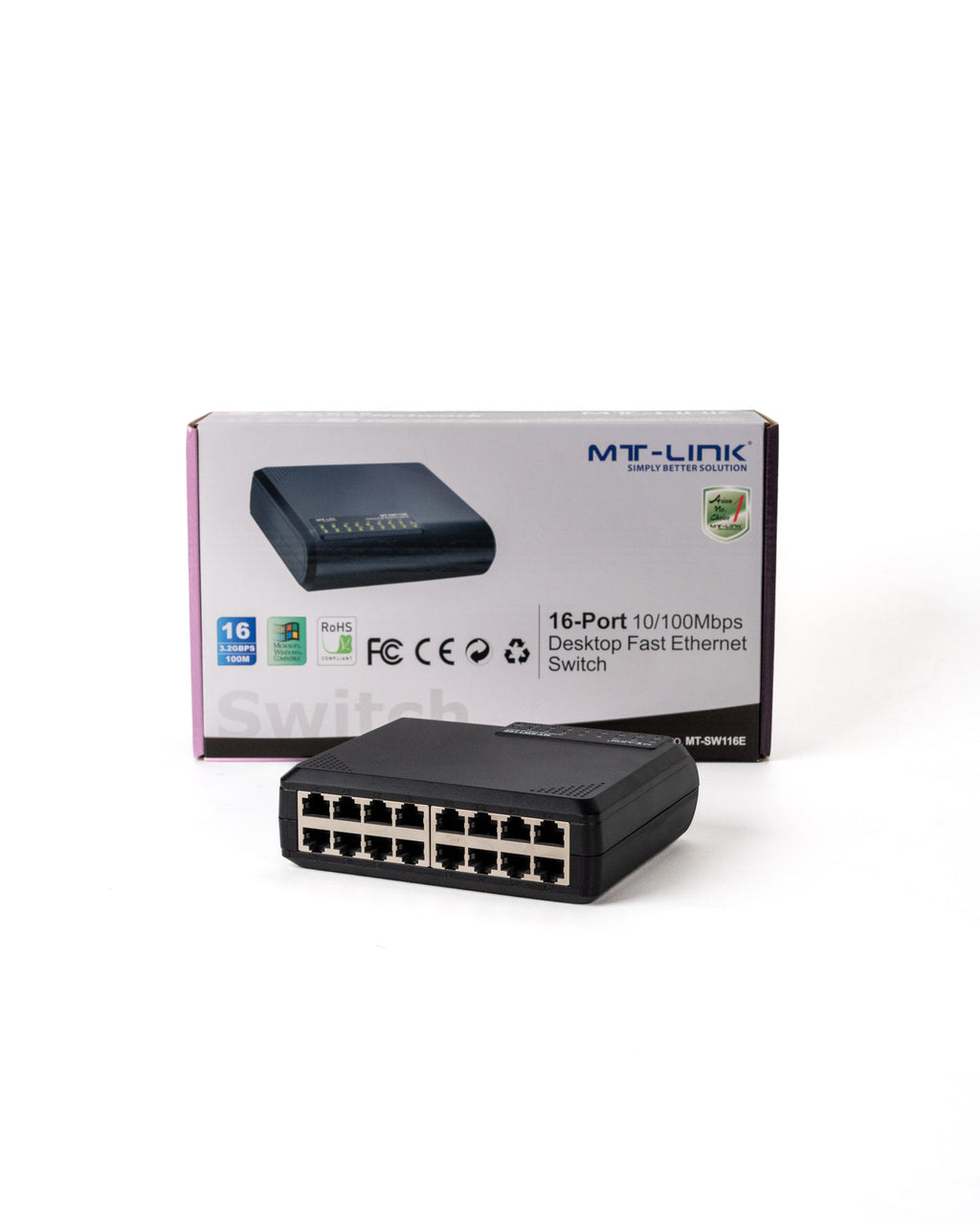

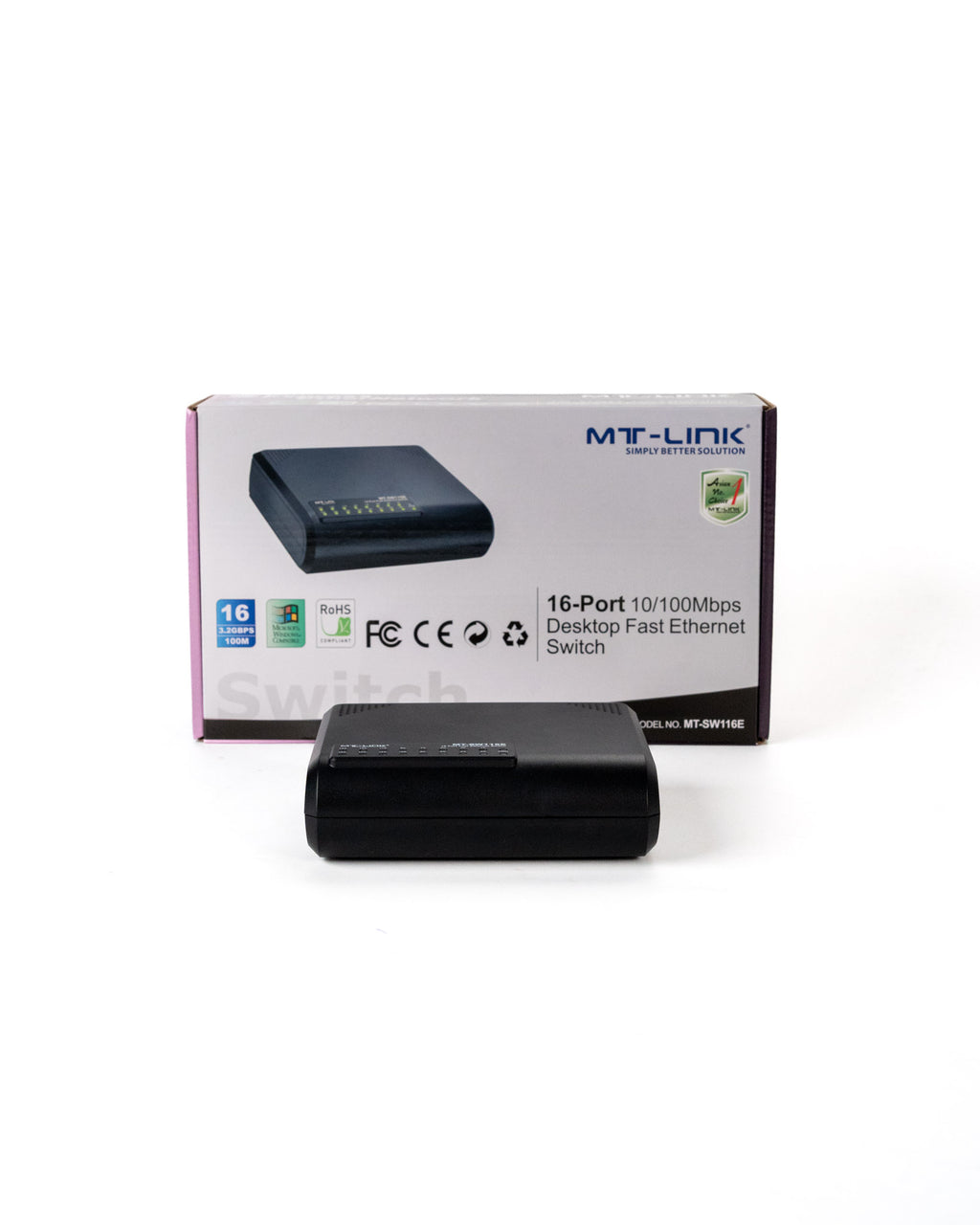

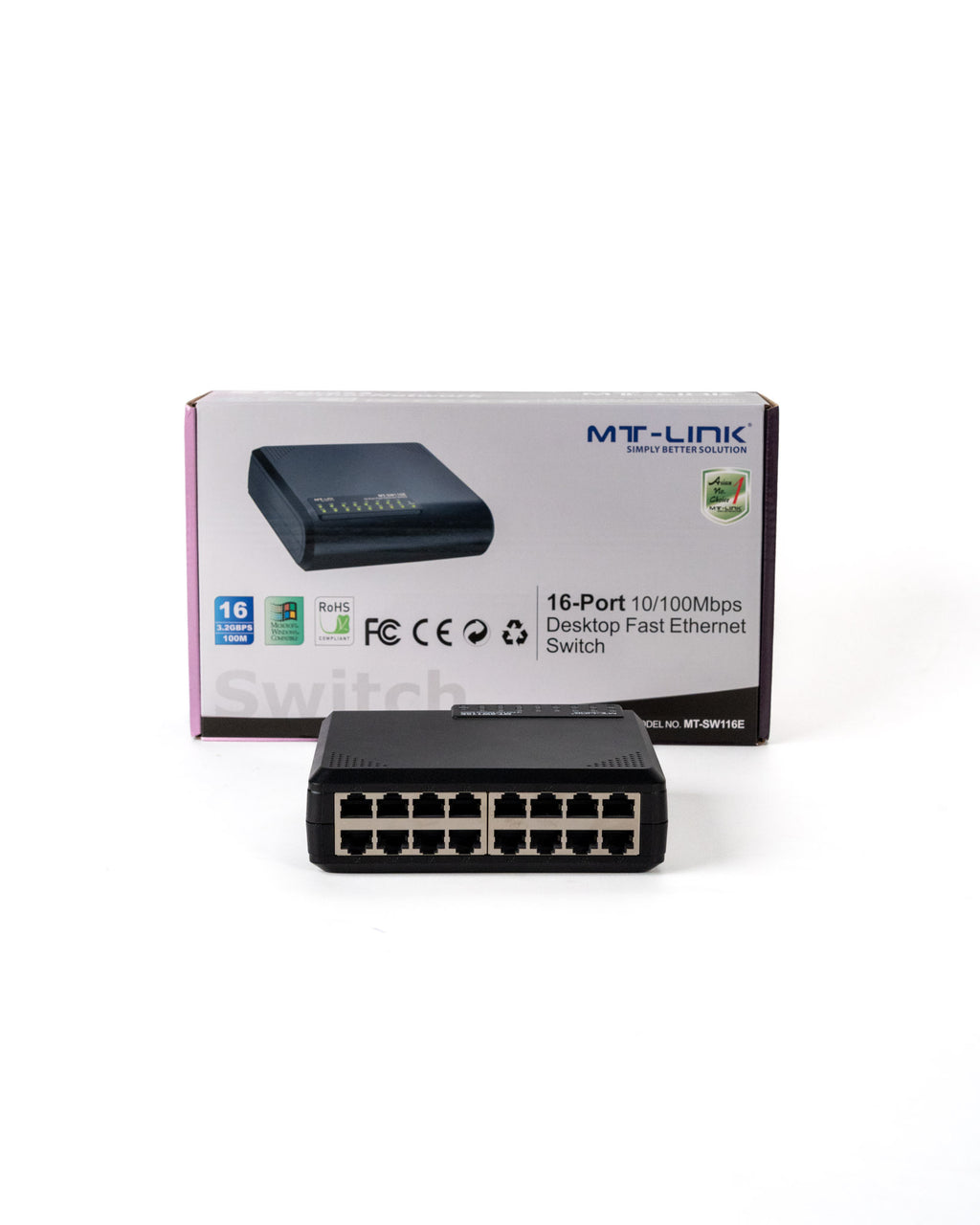

MT-SW116E 16 Port desktop switch 10/100Mbps-1 Year Official Warranty
MT-SW116E 16 Port desktop switch 10/100Mbps-1 Year Official Warranty
MT-SW116E
16 Port desktop switch 10/100Mbps
Overview
This 16 Port Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The 16 Port Fast Ethernet Switch provides you with a low cost, easy to use, high performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer.
Overview
This 16 Port Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The 16 Port Fast Ethernet Switch provides you with a low cost, easy to use, high performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer.
Features
- Compliant with the IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX specifications.
- 16 port 10/100Mbps TX Auto-Negotiation Ethernet Switch.
- 3.2Gbps switching fabric capacity.
- Full/Half-Duplex capability on each TX port.
- Support TP interface Auto MDIX function for auto TX/RX swap.
- IEEE802.3x flow control for Full-duplex, Back Pressure function for Half-duplex operation.
- Support up to 8K MAC addresses.
- Up to 2M bits buffer.
- LED indicators for simple diagnostics and management.
- Built-in power.
- Plug and Play.
Standards and Protocols IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP Basic Function Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for
Half-Duplex ModeBack bound Bandwidth 3.2Gbps MAC Address Table 1k Forwarding Rate 10BASE-T: 14880pps/port
100BASE-TX: 148800pps/portTransmission Method Store-and-Forward Ports 16 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) Power DC 9V Network Media 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100™ STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100™ STP (maximum 100m)LED Indicators Power, Link/Act (1-16) Safety & Emission FCC, CE Environment Operating Temperature: 0C-40C (32F-104F)
