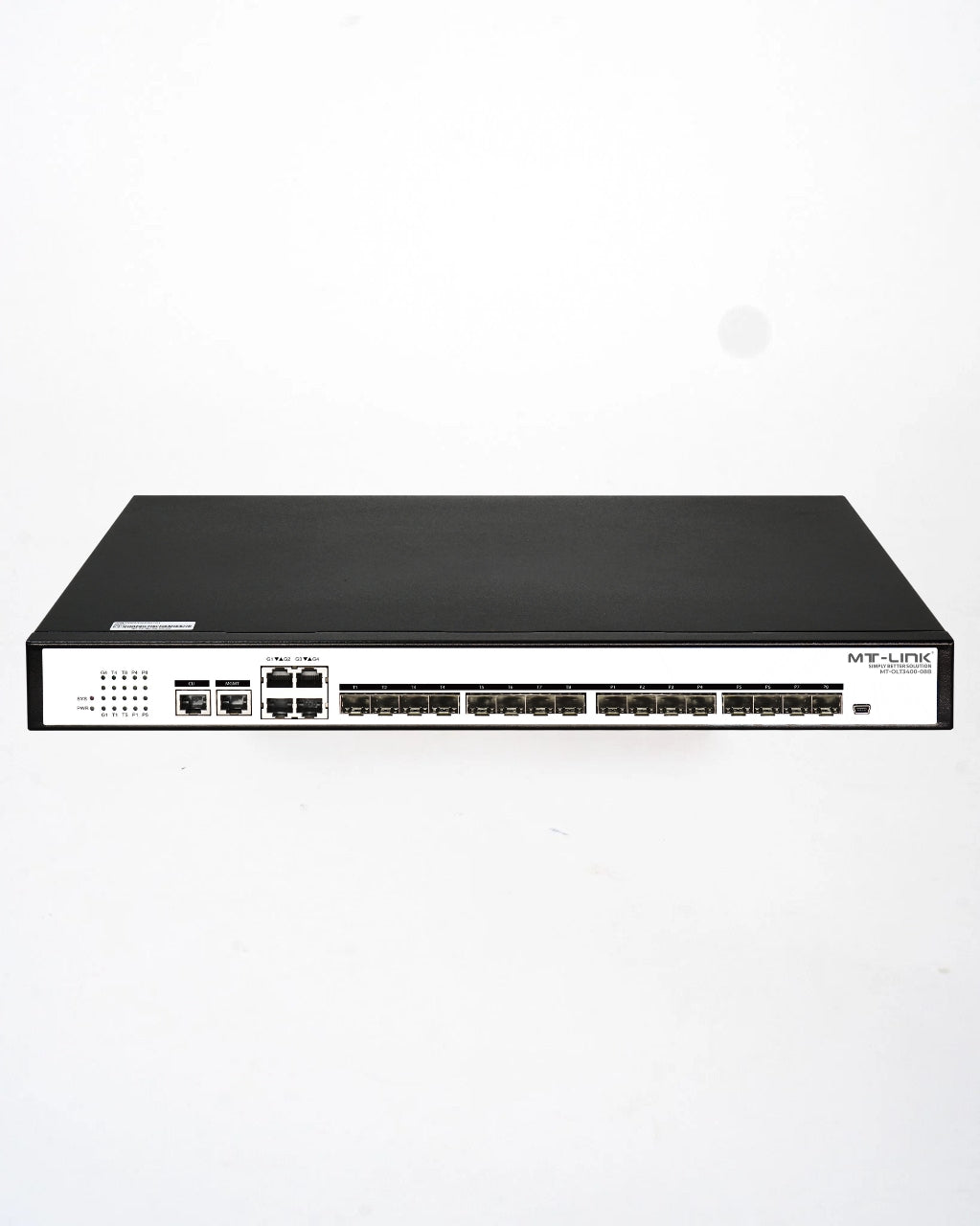

MT-OLT3400-08B

8 Port GPON 10G OLT

8 GPON ports
4 GE SFP ports
4 GE TX/SFP combo ports
8 10GE SFP+ ports

High-density Pizza-box GPON OLT

MT-OLT3400 Series complies with ITU-T G.984/G.988 and meets requirements about GPON OLT in Network Access Technical Requirements. It fully supports CTC2.0, automatic discovery and cooperation with ONUs of different manufacturers.

1 console port
1 out-band 10/100M port
8 fixed PON ports
8 10GE SFP+ ports
4 GE SFP ports
4 GE TX/SFP combo ports

Product Overview

MT-OLT3400 Series supports the Asymmetric uplink 1.25Gbps/ downlink 2.5Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users.

Its coupling ratio ups to 1:128, and its support of different hybrid ONU networks minimize the carrier's investment.

MT-OLT3400 Series supports routing functions such as RIP,OSPF and BGP.

MT-OLT3400 Series ,based on the edge-cutting technologies, is strong in functions and QoS guarantee, SLA and DBA can be
easily listed out.

Product Characteristics

GPON: Abiding by ITU-T G.984/ G.988, MT-OLT3400 Series OLT meets relevant requirements of GPON OLT regulated in Network Access Technical Requirements and China Telecom GPON Technical Requirements CTC2.0;

System Capacity: MT-OLT3400 Series supports 4/8/16 GPON ports.

Uplink Interface: MT-OLT3400 Series is equipped with maximum 4 GE SFP ports, 4 GE combo ports and 4 10GE SFP+ ports.

Dimensions: 1U, occupies a small space. Environmental Protection: low power consumption and low operating cost.

Bus Optical Fiber Protection: the link can be automatically switched when trouble occurs in the optical fiber;

Power Characteristics: supports dual-AC, dual-DC and AC/DC power supply. The power supply supports modularized design, hotswap and EMC-3 standard. It well adapts to the environment.

Features

VLAN	Spanning Tree	Multicast
4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN	802.1D (STP) 802.1W (RSTP) and 802.1S (MSTP) BPDUguard,rootguardand loopback guard	PIM-SM, PIM-DM, IGMP v1/v2/v3, IGMP Snooping, IGMP FastLeave, MVR, IGMP filter
IPv4	IPv6	MPLS
Static routing, RIP v1/v2, OSPF, BGP, PBR, ECMP BFD for OSPF, BGP	ICMPv6, DHCPv6, ACLv6 and IPv6 Telnet IPv6 neighbor discovery, Path MTU discovery MLD snooping IPv6 Static Routing, RIPng, OSPFv3, BGP4+ Manual tunnel, ISATAP tunnel, 6 to 4 tunnel	Multi-VRF
QoS	Security	Reliability
CAR, HQoS, MAC/IP/TCP/UDP/ VLAN/COS/DSCP/TOS based QoS, 802.1P/DSCP priority re-labeling, SP, WRR, and “SP+WRR”, Tail-Drop, · WRED, flow monitoring and traffic shaping	Port isolation, Port security, and “IP+MAC+port” binding, MACsticky DHCP Snooping and option 82, DAI & IP source guard, PPPoE+, · IEEE 802.1x, Radius and BDTacacs+ L2/L3/L4 ACL flow identification and filtrationAnti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc.Broadcast/multicast/unknown unicast storm-control MD5, SHA-256, RSA-1024, AES256, etc.	Static/LACP link aggregation, Interface backup BVSS virtual-stacking EAPS and ERPS URPF, LLDP ISSU VRRP 1+1 power backup
Management	Environment	Certification
Console, Telnet, SSH v1/2, HTTP/HTTPS/li> SNMP v1/v2/v3, RMON/li> TFTP, FTP, SFTP/li> NTP, SPAN, RSPAN	Operating temperature/humidity: 0℃ - 50℃ ,10%-90%non-condensing Storage temperature/humidity: -20℃ -70℃ , 5%-95%non-condensing	CE, FCC,ROHS
