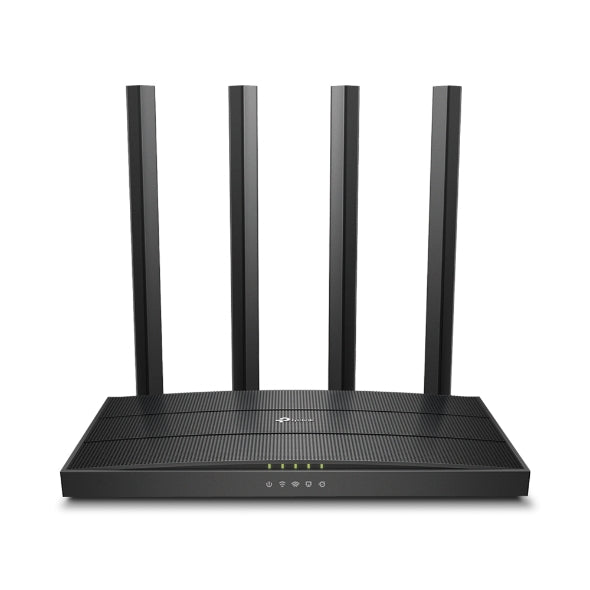

TP-Link Archer C6 AC1200 Wireless MU-MIMO Gigabit Router - 18 Months Official Warranty

AC1200 Wireless MU-MIMO Gigabit Router

The AC1200 MU-MIMO Gigabit Router delivers fast dual-band Wi-Fi performance with enhanced coverage, making it ideal for medium-sized homes. With MU-MIMO technology, Beamforming, and powerful antennas, it ensures smooth streaming, quick downloads, and reliable connectivity across multiple devices.

Key Features

AC1200 Dual-Band Wi-Fi
Offers wireless speeds up to 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band for lag-free HD streaming, online gaming, and daily browsing.

MU-MIMO Technology
Transfers data to multiple devices simultaneously, effectively doubling network efficiency and improving performance in busy households.

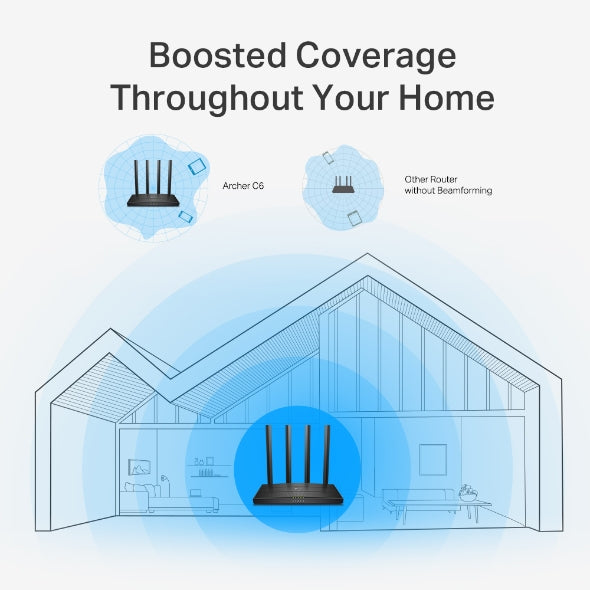

Extended Coverage
Equipped with four high-performance external antennas and Beamforming technology to extend Wi-Fi reach and target devices with stronger, more focused signals.

Access Point Mode
Easily converts a wired internet connection into a wireless hotspot, providing flexible network expansion.

Effortless Setup
Quick installation and full control through the TP-Link Tether App.

Wireless Specifications

• Supports Wi-Fi 5 with IEEE 802.11ac/n/a for 5 GHz and IEEE 802.11n/b/g for 2.4 GHz.

• Wi-Fi speeds: 867 Mbps (5 GHz) + 400 Mbps (2.4 GHz).

• Designed for coverage in 3-bedroom homes.

• Four fixed antennas create a multi-directional, signal-boosting array.

• Beamforming focuses wireless signals directly toward connected devices.

• Optimized medium capacity with dual-band distribution.

• MU-MIMO communication with multiple clients at once.

• Airtime Fairness improves network efficiency.

• Supports Router Mode and Access Point Mode.

Security Features

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

• Separate guest networks on both 2.4 GHz and 5 GHz bands

• Supports WPA, WPA2, WPA3, and WPA/WPA2-Enterprise encryption

Hardware Specifications

• Powered by a 1.2 GHz CPU for stable performance

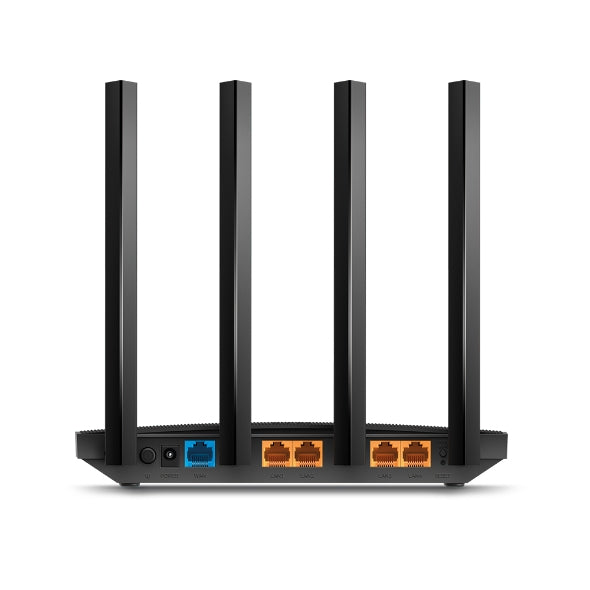

• 1× Gigabit WAN port

• 4× Gigabit LAN ports

• Power: 12 V ⎓ 1 A

(All button labels such as WPS, reset, etc. have been removed as requested.)

Software Features

• Supports IPv4 and IPv6

• OneMesh™ compatible for seamless whole-home coverage without replacing existing devices

• Parental controls with URL filtering and time limits

• WAN types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

• Device-based QoS

• Cloud features: OTA firmware updates, TP-Link ID, DDNS

• NAT forwarding: port forwarding, port triggering, DMZ, UPnP

• IPTV support: IGMP Proxy, IGMP Snooping, Bridge, VLAN Tagging

• Full DHCP functions including reservation and server management

• DDNS via TP-Link, NO-IP, DynDNS

• Manageable via Tether App or web interface

Network Services Enabled by Default

• Web management (HTTP/HTTPS)

• DNS services

• DHCP server for IP assignment

• App-based device management

• Alexa LAN service detection

System Requirements

• Works with all major browsers: IE 11+, Firefox 12+, Chrome 20+, Safari 4+

• Compatible with cable or DSL modems

• Requires an active ISP subscription

Certifications & Environmental Conditions

• Certifications: FCC, CE, RoHS

• Operating temperature: 0°C–40°C

• Storage temperature: -40°C–70°C

• Operating humidity: 10%–90% (non-condensing)

• Storage humidity: 5%–90% (non-condensing)

Test Data

Transmission Power

• CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)

• FCC: <30 dBm (both bands)

Reception Sensitivity
Includes detailed sensitivity results for 11a, 11ac, and 11n across different modulation schemes, ensuring reliable performance even under low-signal conditions.

Physical Specifications

• Dimensions: 215 × 117 × 32 mm (8.5 × 4.6 × 1.2 in)

Package Includes:

• Archer C6 Wi-Fi Router

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
