TP-Link Archer AXE75 AXE5400 Tri-Band Gigabit Wi-Fi 6E Router - 18 Months Official Warranty

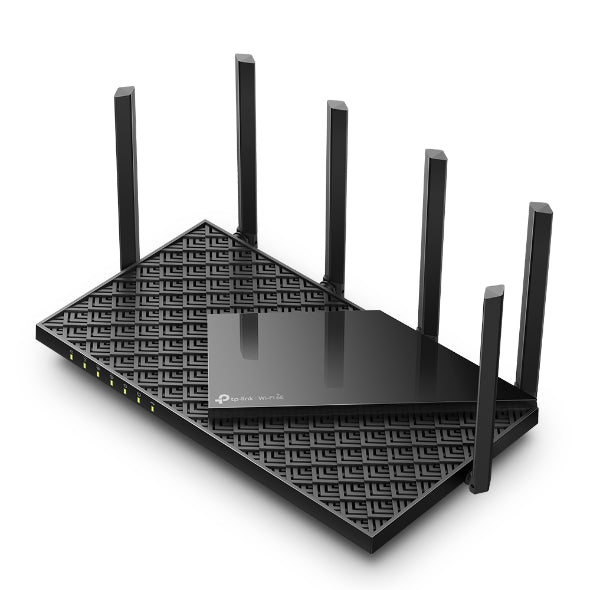

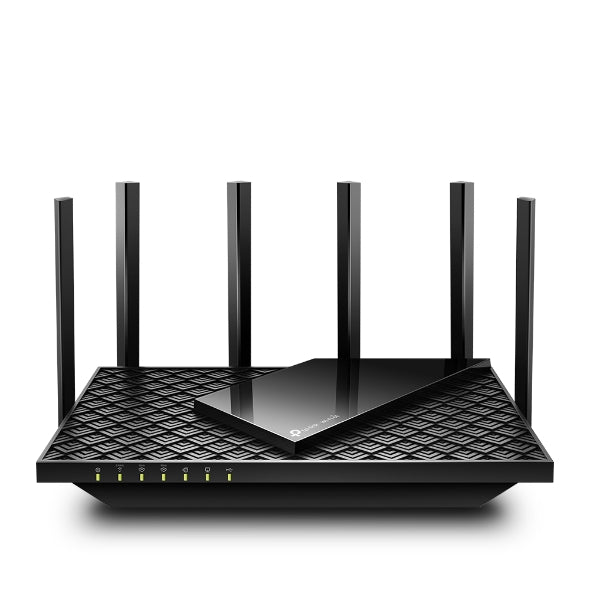

Archer AXE75 – AXE5400 Tri-Band Wi-Fi 6E Router

The Archer AXE75 is a high-performance Tri-Band Wi-Fi 6E router, delivering blazing-fast Wi-Fi speeds of up to 5400 Mbps. With dual 5 GHz and 6 GHz bands, it ensures ultra-low latency for gaming, video calls, and 4K streaming, while providing reliable connectivity for multiple devices.

Equipped with a 1.7 GHz quad-core processor, the router handles heavy network traffic effortlessly. USB 3.0 support offers transfer speeds up to 10× faster than USB 2.0. The new 6 GHz Wi-Fi band reduces congestion, boosts speed, and improves overall network performance.

With TP-Link HomeShield, you get comprehensive network protection, robust parental controls, and real-time IoT security. OneMesh™ compatibility allows you to extend your Wi-Fi coverage seamlessly by connecting with TP-Link OneMesh extenders. OFDMA technology boosts capacity for simultaneous device connections, and ultra-low latency ensures responsive gaming and streaming experiences.

The Archer AXE75 also integrates with Amazon Alexa, enabling voice control for smarter, hands-free operation.

WIRELESS FEATURES

• Standards & Protocols: Wi-Fi 6E (IEEE 802.11ax 6 GHz, 5 GHz, 2.4 GHz)

• Speeds: 6 GHz: 2402 Mbps | 5 GHz: 2402 Mbps | 2.4 GHz: 574 Mbps

• Coverage: Ideal for 2–3 bedroom homes

• Antennas: 6 high-performance fixed antennas

• Beamforming & High-Power FEM: Focused signal strength for improved coverage

• Wi-Fi Capacity: Very High, Tri-Band

• Technologies: OFDMA, Airtime Fairness, DFS

• Streams: 6

• Modes: Router Mode, Access Point Mode

SECURITY FEATURES

• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway

• HomeShield: Real-time IoT protection, malicious site blocker, intrusion prevention, DDoS protection, home network scanner

• Guest Networks: 1× 6 GHz | 1× 5 GHz | 1× 2.4 GHz

• VPN Support: OpenVPN, PPTP, L2TP (Server & Client)

• Wi-Fi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise

HARDWARE

• Processor: 1.7 GHz Quad-Core CPU

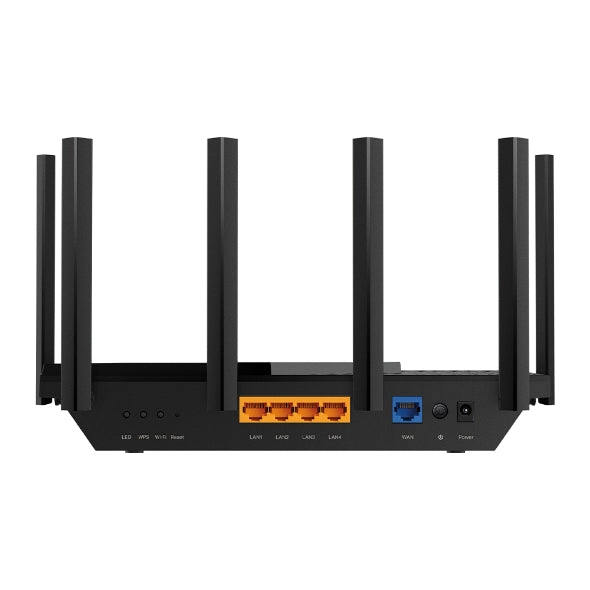

• Ethernet Ports: 1× Gigabit WAN | 4× Gigabit LAN

• USB Ports: 1× USB 3.0 (supports NTFS, exFAT, HFS+, FAT32; Apple Time Machine, FTP, Media, Samba Server)

• Buttons: Wi-Fi On/Off, Power On/Off, LED On/Off, WPS, Reset

• Power Supply: 12 V ⎓ 2.5 A

SOFTWARE & MANAGEMENT

• Protocols: IPv4, IPv6

• HomeShield: Parental controls, custom profiles, content filtering, family scheduling, internet pause, weekly/monthly reports

• OneMesh™ & EasyMesh: Seamless whole-home mesh networking without replacing existing devices

• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

• QoS: Device-based QoS

• Cloud Services: Auto firmware updates, TP-Link ID

• Port Forwarding & NAT: Port forwarding, port triggering, DMZ, UPnP, virtual server, IPTV support (IGMP Proxy/Snooping)

• DHCP & DDNS: Address reservation, client list, server; TP-Link, NO-IP, DynDNS

• Management: Tether App, web interface

NETWORK SERVICES

• Web Server: HTTP/HTTPS (Port 80/443, TCP)

• DNS: Port 53 (TCP/UDP)

• DHCP Server: Port 67 (UDP)

• App Management: TCP Ports 20001, 30001 | UDP Port 20002

TEST DATA

• Wi-Fi Transmission Power: FCC: ≤29 dBm (2.4 GHz), ≤28 dBm (5 GHz), ≤22 dBm (6 GHz) | CE: ≤17 dBm (2.4 GHz), ≤27 dBm (5 GHz), ≤20 dBm (6 GHz)

• Wi-Fi Reception Sensitivity: Detailed specifications for 2.4 GHz, 5 GHz, and 6 GHz bands

PHYSICAL

• Dimensions (W×D×H): 10.7 × 5.8 × 1.9 in (272.5 × 147.2 × 49.2 mm)

PACKAGE CONTENTS

• Archer AXE75 Wi-Fi Router

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
