TP-Link Archer AX53 AX3000 Dual Band Wi-Fi 6 Gigabit Router - 18 Months Official Warranty

Archer AX53 – AX3000 Dual-Band Gigabit Wi-Fi 6 Router

The Archer AX53 provides next-generation Wi-Fi 6 performance with speeds up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, ensuring smooth streaming, fast downloads, and reliable connectivity. OFDMA technology allows multiple devices to transmit data simultaneously, while ultra-low latency ensures responsive gaming and seamless video calls.

Expanded coverage is achieved with four high-gain external antennas and Beamforming technology, delivering strong and consistent Wi-Fi throughout your home. TP-Link HomeShield protects your network and connected devices from the latest cyber threats. Target Wake Time improves battery efficiency on your devices, and the router is compatible with Amazon Alexa for easy voice control. Additionally, it is EasyMesh-compatible, allowing flexible mesh network creation for seamless whole-home coverage.

WIRELESS FEATURES

• Standards & Protocols: Wi-Fi 6 (IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz)

• Speeds: 5 GHz: 2402 Mbps | 2.4 GHz: 574 Mbps

• Coverage: Suitable for 2-3 bedroom homes

• Antennas: 4 fixed high-performance antennas

• Technologies: Beamforming, High-Power FEM, OFDMA, Airtime Fairness, DFS

• Streams: 4

• Bands: Dual-Band

• Modes: Router Mode, Access Point Mode

SECURITY FEATURES

• Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway

• HomeShield: Real-time IoT protection, malicious site blocking, intrusion prevention, DDoS protection, network scanning

• Guest Networks: 1× 5 GHz | 1× 2.4 GHz

• VPN Support: OpenVPN, PPTP, WireGuard (Server & Client, V2 support)

• Wi-Fi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise

HARDWARE

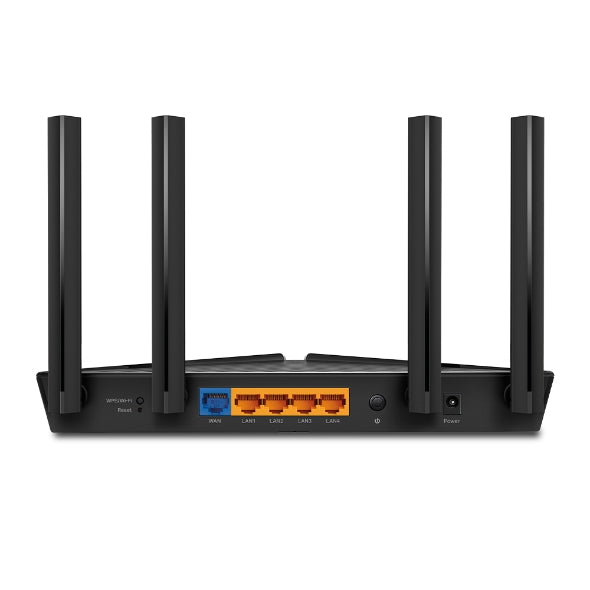

• Ethernet Ports: 1× Gigabit WAN | 4× Gigabit LAN

• Buttons: Wi-Fi/WPS, Power On/Off, Reset

• Power Supply: 12 V ⎓ 1 A

SOFTWARE & MANAGEMENT

• Protocols: IPv4, IPv6

• EasyMesh: Supports mesh networking with EasyMesh-compatible devices for seamless whole-home Wi-Fi, eliminating dead zones and allowing flexible expansion

• Parental Controls: Custom profiles, professional content filter library, family time scheduling, internet pause, usage reports

• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

• Quality of Service: Device-based QoS

• Cloud Services: Auto firmware updates, TP-Link ID

• NAT Forwarding: Virtual servers, port forwarding, port triggering, DMZ, UPnP

• IPTV Support: IGMP Proxy/Snooping, Bridge, Tag VLAN

• DHCP & DDNS: Address reservation, client list, server; TP-Link, NO-IP, DynDNS

• Management: Tether App, web interface

NETWORK SERVICES

• Web Server: HTTP/HTTPS (Port 80/443, TCP)

• DNS: Port 53 (TCP/UDP)

• DHCP Server: Port 67 (UDP)

• App Management: TCP Ports 20001, 30001 | UDP Port 20002

TEST DATA

• Wi-Fi Transmission Power: CE & FCC compliant across 2.4 GHz and 5 GHz bands

• Wi-Fi Reception Sensitivity: Detailed specifications for multiple MCS rates on 2.4 GHz and 5 GHz

PHYSICAL

• Dimensions (W×D×H): 10.2 × 5.3 × 1.6 in (260.2 × 135 × 41.6 mm)

PACKAGE CONTENTS

• Archer AX53 Wireless Router

• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
